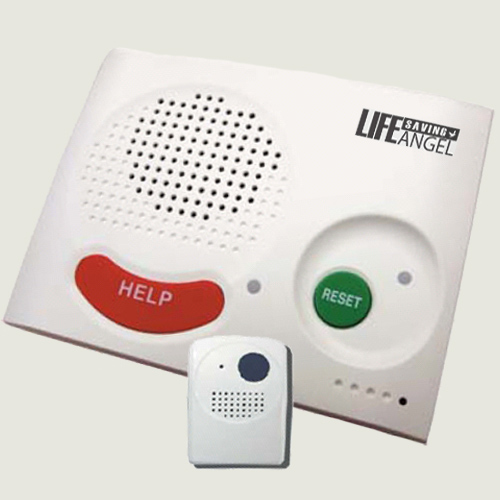

The CONCERTO




The CONCERTO




      The modern design of Medical Emergency Alarm System to be used in the homes of the old and physically handicapped. With its big red “HELP” button and associated transmitters including a portable emergency pendant, a single press of the button can start an emergency signal to be sent to the Central Monitoring Station, or an optional call to a Personal Phone Number for immediate assistance.

     It features an advanced “Two Way Voice Communication” which allows the Monitoring Station to listen in to what is happening on the client’s side or to talk to the client through the built-in microphone & speaker. The Green Reset Button can also be programmed to dial non-emergency calls for 30 minutes, allowing you to enjoy a hands-free communication freedom.

     Supervision is added to receive the supervisory signals from Wrist Pendants to indicate their proper functioning. Furthermore, The Concerto is specially designed with a variety of Alarm Protocols, adding its versatility for the most advanced monitored security market.


Features :






* Central Monitoring Communication Protocols: Contact ID, Scancom Social Alarm    Format (SAF), and Tunstall Telecom Format

* Up to 4 different phone numbers can be stored in priority order with the choice of    Central Monitoring Station reporting or Voice reporting

* A Voice message with the capacity of 20 secs can be recorded

* Two Way Hands-Free Voice Communication” allows the personnel in Central    Monitoring Station to talk to you, and listen-in to what is happening on your side through    the built-in microphone & speaker

* Hands free call answering

* Half duplex (Push to Talk & Listen In) & Full duplex (Two-Way Conversation) speech    path controlled by DTMF commands

* Capable of Remote & Local programming using regular DTMF phone or a programmer

* Incorporated pre-dial alert tones followed by comfort tones, to indicate that emergency    communication is in progress

* Pre-dial “guard time” programmable from 0 seconds to 99 seconds

* Silent Emergency Calls with Half Duplex Listen In only for victim monitoring function

*“Help arrived” confirmation feature

* Supervision for Wrist Pendants WTRF & WTRM): Problems such as Low battery or    Damage are detected in normal times so that rectifications can be made, thus ensure    that the Wrist Pendent is working properly when needed.

* Mobility Check

* Master Control over phone line

* Automatic Check-in Report

* Fault reporting: AC Power failure, Device Low Battery, and Panel Low Battery

* A maximum of 10 devices can be added in one system including: Waterproof Wrist    Transmitter, Waterproof Emergency Pendant, Passive Infrared Detector, Fixed Panic    Button, Smoke Detector, Carbon Monoxide Detector, and Water Sensor

* Brightly illuminated large Red Emergency button for easy access in an Emergency

* Wall-mounting and table-top available

* Compatible with Programmer for both local & remote programming. Settings can be    easily managed by using the built-in LCD display and keypad. Complimentary    Windows-based software “Pilot-835” is provided, which allows you to program and edit    the settings efficiently from a computer

* Optional Voice Reporting: calling out to users’ landline or mobile phone (a voice    message with the capacity of 20 secs can be recorded)

* Optional Voice Prompt: playing customized voice prompts in certain events




Specifications :




* Power: 12V 500mA adaptor



* Back up battery: 7.2V 600mAh Ni-Mh rechargeable battery x 6



* Battery back up time: 18 hours minimum

  * Speaker: 3W


* Radio frequency available: 433 MHz / 868.35 MHz / 868.6375 MHz / 869.2375 MHz (other    frequency available upon request)



* Radio frequency range: 433 MHz or 868.35MHz: Over 200 meters in open space    868.6375MHz or 869.2375 MHz: Over 300 meters in open space

  * Operating temperature: -10° to +45°C


* Humidity: up to 90% non-condensing



* Dimensions: 178 X 120 X 32 mm






Smallest Voice Reach Talking Pendant

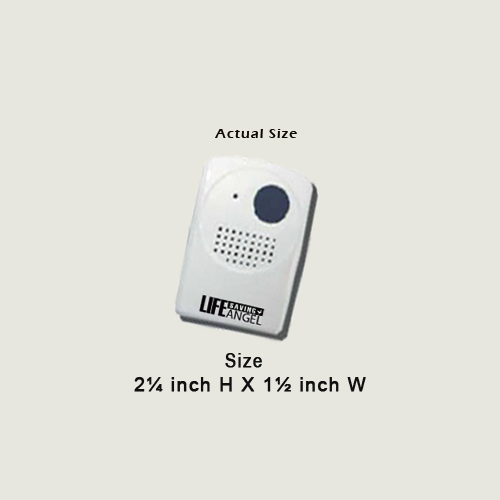

Concerto Pendant




Features




To ensure WTRVS functioning properly, a test button is provided for you to check if it is out of signal range. With those intelligent features, it really ensures that your emergency issue can be handed properly and timely.


     • Smallest and most delicate talking pedant in the market


• “Two Way Hands-Free Voice Communication”allows the personnel in Central Monitoring Station to talk to the user, and listen-in to what is happening on his/her side through the built-in microphone & speaker without moving to the Control Panel


    • Waterproof
    • Ultra low power consumption
    • Can be worn around the neck as a pendant


    Specifications :



Frequency available: 1880-1900MHz (Europe) / 1920-1930 MHz (US)




Max Range: 150 meters in open area




Power: Lithium 3V battery




Battery life: 5.77 years or over


    Operating temperature: -20° to 50°C
    Humidity: up to 90% non-condensing
    Dimensions: 61 X 42 X 20mm
    * Note : Battery life is calculated at an average of 3-minute activation per month.



Retailed Price








Total :
$479.00


G.S.T. 5%
 $23.95


P.S.T. 9.5%
 $47.78


Grand Total :
$550.73

      * Shipping charges are not included
      * Prices are subject to change without prior notice and are calculated in Canadian dollars
